Aerial Acrobatic Beam Clamp MK3

€299,00 €349,00
Description

This is the MK3 edition of the first beam clamp designed expressly for aerial circus with only a slightly different shape to the original version. It securely attaches to steel beams and the adjustable opening allows it to be clamped to various common sizes of steel I rail.

It is essential that a structural engineer certifies that the beam is suitable for this clamp and for performing aerial from before you buy and use this product.

Rigging not included.

WLL: 750kg (downward)
Rigging Available Separately
Shipping & Returns Info
Orders under €200 Orders over €200
Economy: 3-5 working days €12.95 Free
Standard: 2 working days €19.95 €19.95
Priority: next working day See Checkout See Checkout

Full delivery info 60 day no quibble returns
Firetoys Sustainability Info
firetoys eco focus logoFiretoys is committed to sustainability.

We are passionate about reducing our impact on the environment. Read about our key achievements to date (including being 100% renewably powered) and our targets for the future in our Eco Policy
Aerial Safety

Aerial equipment should never be used unsupervised, please consult a professional.

Everything below assumes you have a suitable and safe rigging point, like a professionally installed rigging point or a reputable and rated freestanding rig. Not every home/studio will be the same, so we cannot advise on this part. If you haven’t established a safe rigging point, please do this first with the help of a structural engineer/experienced rigger/professional familiar with what you're hanging and where you're hanging it.

Check out our aerial blogs for more information.
View details
Close up beam clamp bolts

Easy Installation

With an impact wrench (19mm Sockets), this clamp can be easily attached to most I-beams. The 4 individually moving points give this clamp the ability to fit a range of beam widths from 64mm to 220mm, which makes this even more versatile as a rigging option.

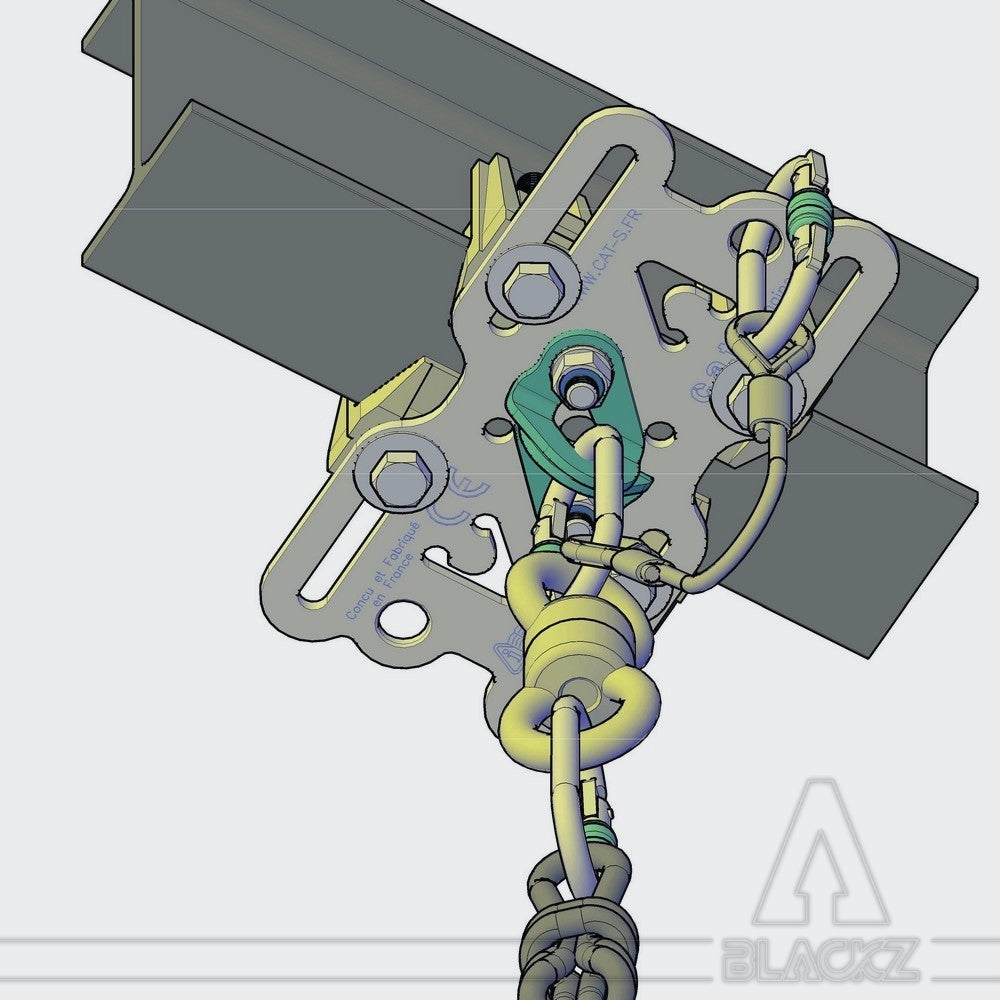

Once the clamp itself is installed, the simple rigging point in the middle is easy to clip carabiners to. This beam clamp is also compatable with the use of swivels. You can even use the secondary rigging points at the ends as a redundant failover point with a short cable or sling.

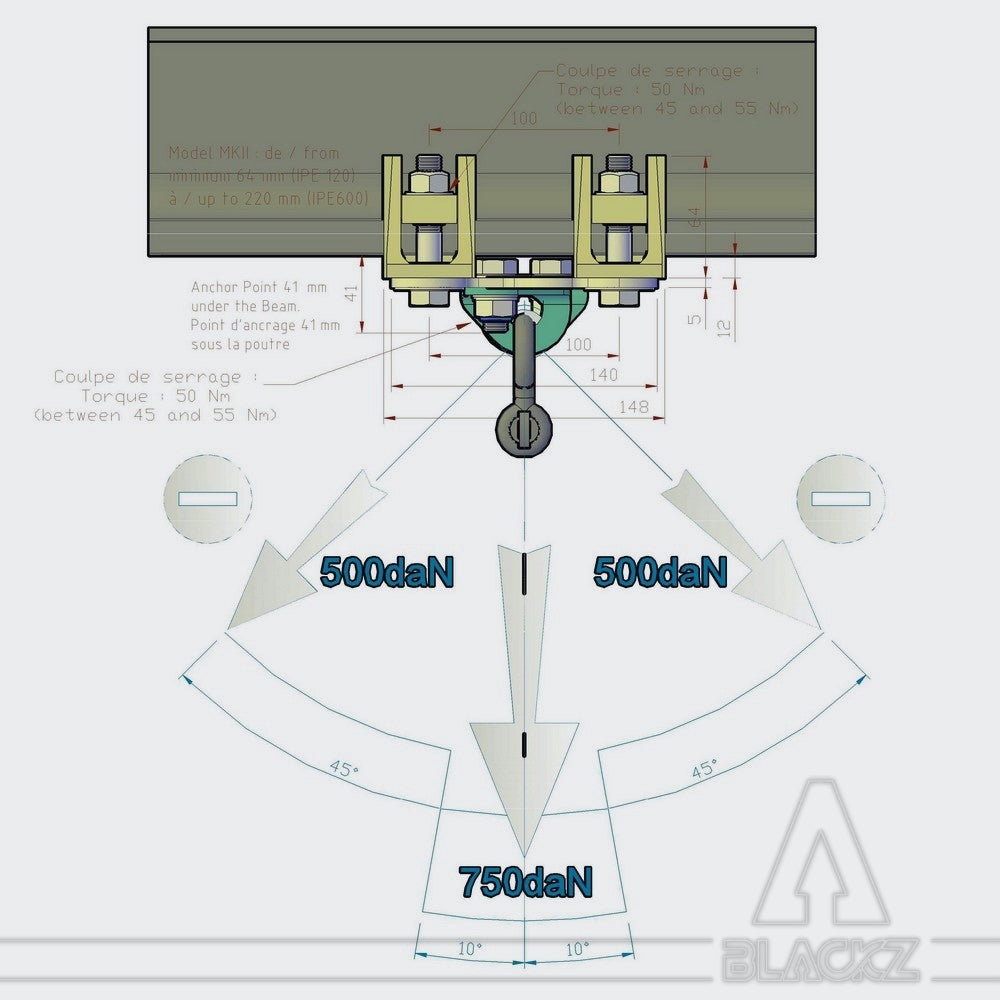

Angles up to 45°

This Beam Clamp has been specially designed to allow for angled forces, something that most static beam clamps aren't suitable for. The standard downward WLL is 750kg (from a BLL of more than 3000kg), and the angular WLL is 500kg, still more than most performers would need.

It is not however suitable for fully swinging loads that exceed 45°.

Customer Reviews

Based on 1 review
100%
(1)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
P
Paul Ryan
Good bit of kit

Purchased for a domestic set up to work off an installed steel beam. Fully adjustable and solid.
